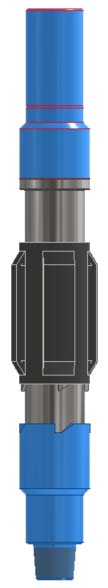

NON-ROTATING STABILIZER
MZS non-rotating stabilizer (Rubber Sleeve Stabilizer) is a special tool in drilling
to avoid blade wear and wall damage. The non-rotating stabilizer consists of mandrel, copper washer, rubber sleeve, spacer sleeve and self-locking lower sub. During drilling, the non-rotating stabilizer transfer the torque by means of mandrel, the rubber sleeve is sliding and moving relative to the mandrel, the rubber sleeve thus plays a role in stabilizer of well. A locking clutch (self-locking lower sub) will avoid sleeve rotation during wash over operation.
SPECIFICATIONS
Sleeve | Mandrel | Overall | ||||
Length(mm) | O.D.(mm) | Blade Qty | I.D.(mm) | Fishing O.D.(mm) | Connection | Length(mm) |
380 | ?155 | 4 | ?944 | ?121 | NC38 | 1638 |
380 | ?157 | 4 | ?944 | ?127 | NC38 | 1638 |
500 | ?214 | 4 | ?971 | ?165 | NC50 | 2013 |
500 | ?220 | 4 | ?971 | ?165 | NC50 | 2013 |
500 | ?255 | 4 | ?971 | ?165 | NC50 | 2013 |
500 | ?304 | 4 | ?976 | ?203 | 6 5/8 REG | 2000 |
500 | ?310 | 4 | ?976 | ?203 | 6 5/8 REG | 2000 |
500 | ?313 | 4 | ?971 | ?165 | NC50 | 2013 |
500 | ?371 | 4 | ?971 | ?197 | 6 5/8 REG | 2013 |
500 | ?374 | 4 | ?971 | ?203 | 6 5/8 REG | 2013 |
520 | ?405 | 4 | ?976 | ?241 | 7 5/8 REG | 2045 |
520 | ?430 | 4 | ?976 | ?241 | 7 5/8 REG | 2045 |
520 | ?444 | 4 | ?976 | ?241 | 7 5/8 REG | 2045 |
600 | ?558 | 4 | ?976 | ?241 | 7 5/8 REG | 2130 |
690 | ?711 | 5 | ?976 | ?241 | 7 5/8 REG | 2210 |
